LM250WW1-SSA3 sourcing requires a cable specification that connects the offered panel revision to an identified controller output. Ordering a “92-pin LVDS cable” leaves signal assignment, contact orientation, and power wiring unresolved. For OEM equipment, that uncertainty can change the required board and harness before a sample is built.
Claim: Pin count starts the inquiry; approved signal, power, and contact definitions establish the cable purchase.
What Evidence Defines the LM250WW1-SSA3 Connection?
Which SSA3 Records Must Precede Cable Selection?
XIANHENG's product page lists 2560 × 1080 resolution, four-channel 8-bit LVDS, a 92-pin 0.5 mm-pitch connector, a 10.0 V typical panel supply, and an external LED driver. Treat these as inquiry references until the applicable SSA3 manufacturer pin table and electrical specification confirm the offered configuration.

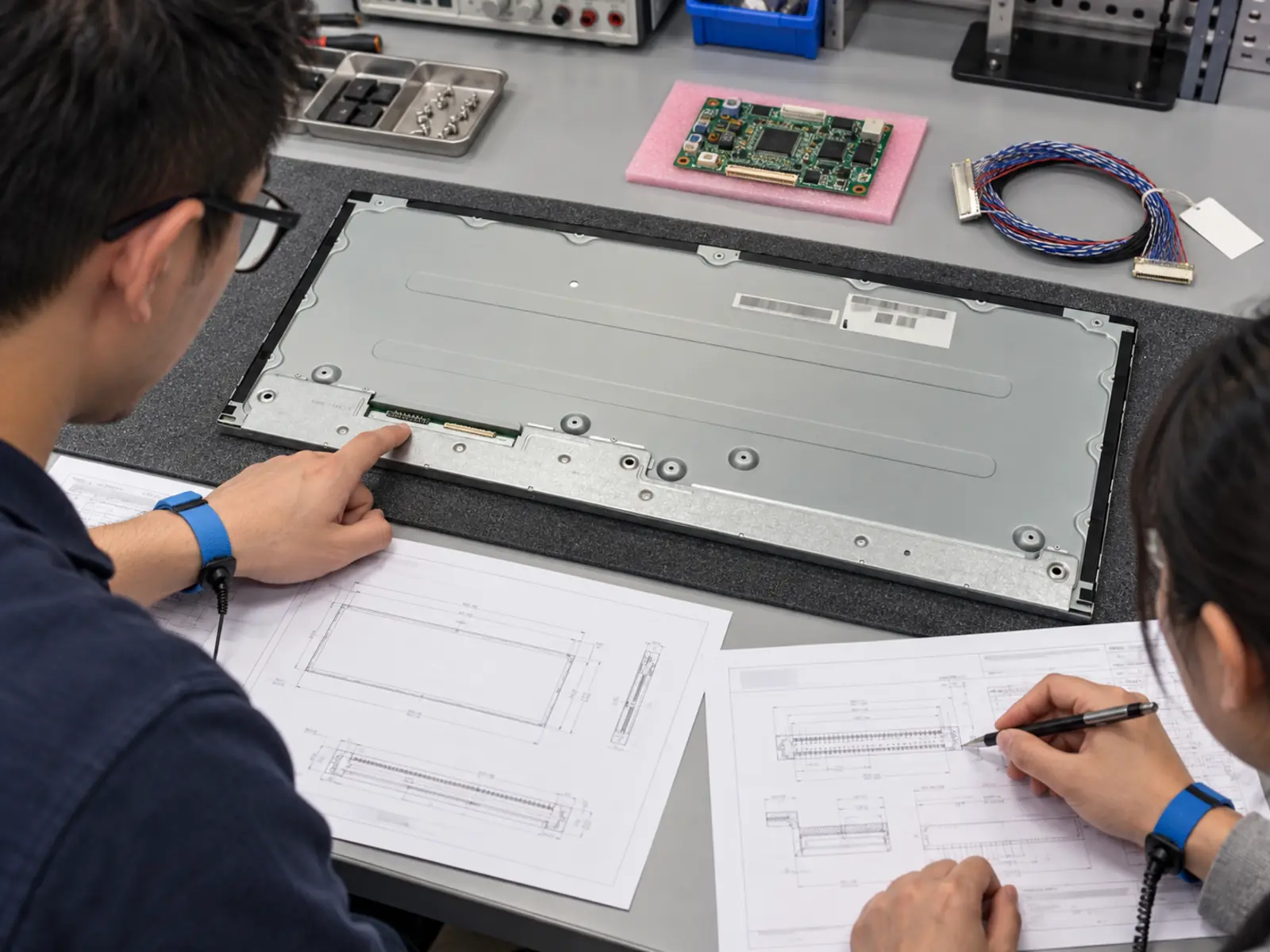

Request the complete panel-label photograph, applicable LG Display specification, connector part number, and drawing revision. Identify which physical interface the quoted connector describes. An SSA1 or SSA2 family document cannot establish SSA3 wiring without a documented comparison applicable to the offered revision.
Claim: The cable specification must trace back to the offered SSA3 revision, with unresolved interface details kept open.
What Must the Dedicated Cable Drawing Define?
Require a numbered connection schedule linking each controller contact to its panel-side destination. A photograph cannot establish whether numbering is shown from the mating face or cable-entry side.
| Drawing item | Required definition |
|---|---|
| Connector ends | Manufacturer part numbers, mating views, pin-one marks, contact orientation, and locking arrangement. |
| Video conductors | Data and clock groups, pair polarity, pixel assignment, and the required color-bit mapping. |
| Power and controls | Supply and return contacts, control functions, and treatment of reserved or unconnected pins. |
| Cable construction | Length, pair construction, impedance requirements, shielding termination, bends, and restraint. |
Apply the confirmed connector's contact specification to the selected cable construction. Define any separate backlight harness independently; the advertised video-connector count does not define LED wiring.
Claim: A dedicated cable drawing must define electrical connections and physical contact geometry together.
How Does the Wiring Proposal Become an Approved Purchase?
When Does the Controller Choice Need to Change?

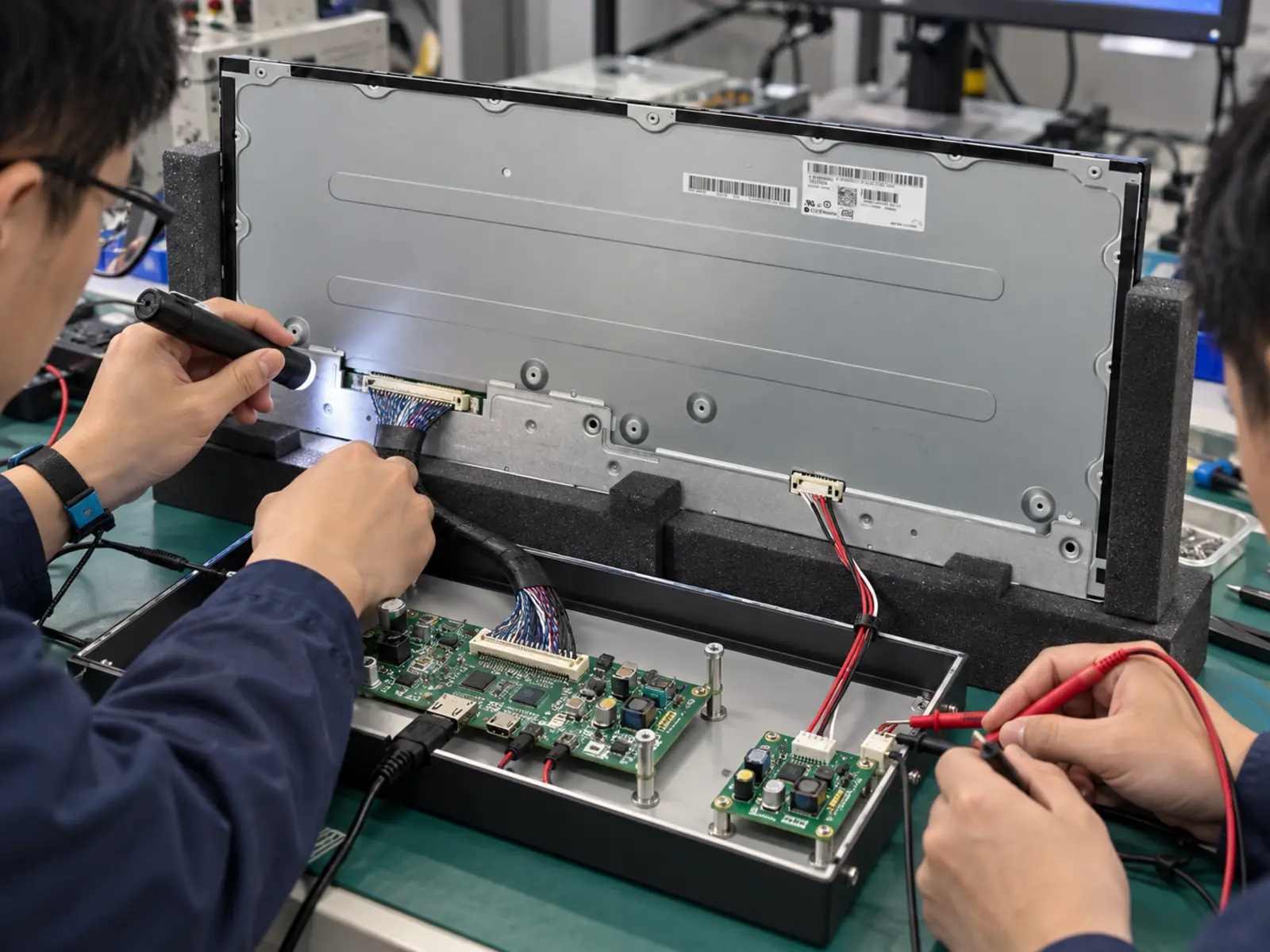

Provide the host output and proposed controller model, board revision, output schematic, and firmware identifier. Ask the supplier to reconcile its actual LVDS outputs with the confirmed SSA3 clock/data grouping and pixel allocation. A passive harness cannot create output links absent from the board.
Color mapping is another decision. TI's LVDS mapping guidance distinguishes JEIDA and VESA arrangements; it does not identify which arrangement SSA3 requires. Match the panel document to the selected transmitter configuration instead of assigning a format from the connector count.
Request the configured native-resolution timing and approved refresh mode. If the retained board cannot generate the required organization or timing, select different control hardware before fabricating the production harness. Confirm panel-voltage range, sequencing, and external LED-driver requirements separately; the website's typical voltage is insufficient for power release.
Claim: Cable fabrication should follow proof that the selected controller can produce the panel's required signals.
How Should the Wired Sample Release the Order?
Before connecting power, inspect connector orientation and verify the unpowered harness against its numbered schedule for continuity, shorts, and unintended connections. Use the approved power arrangement and confirm relevant rails and sequencing against the applicable specification.

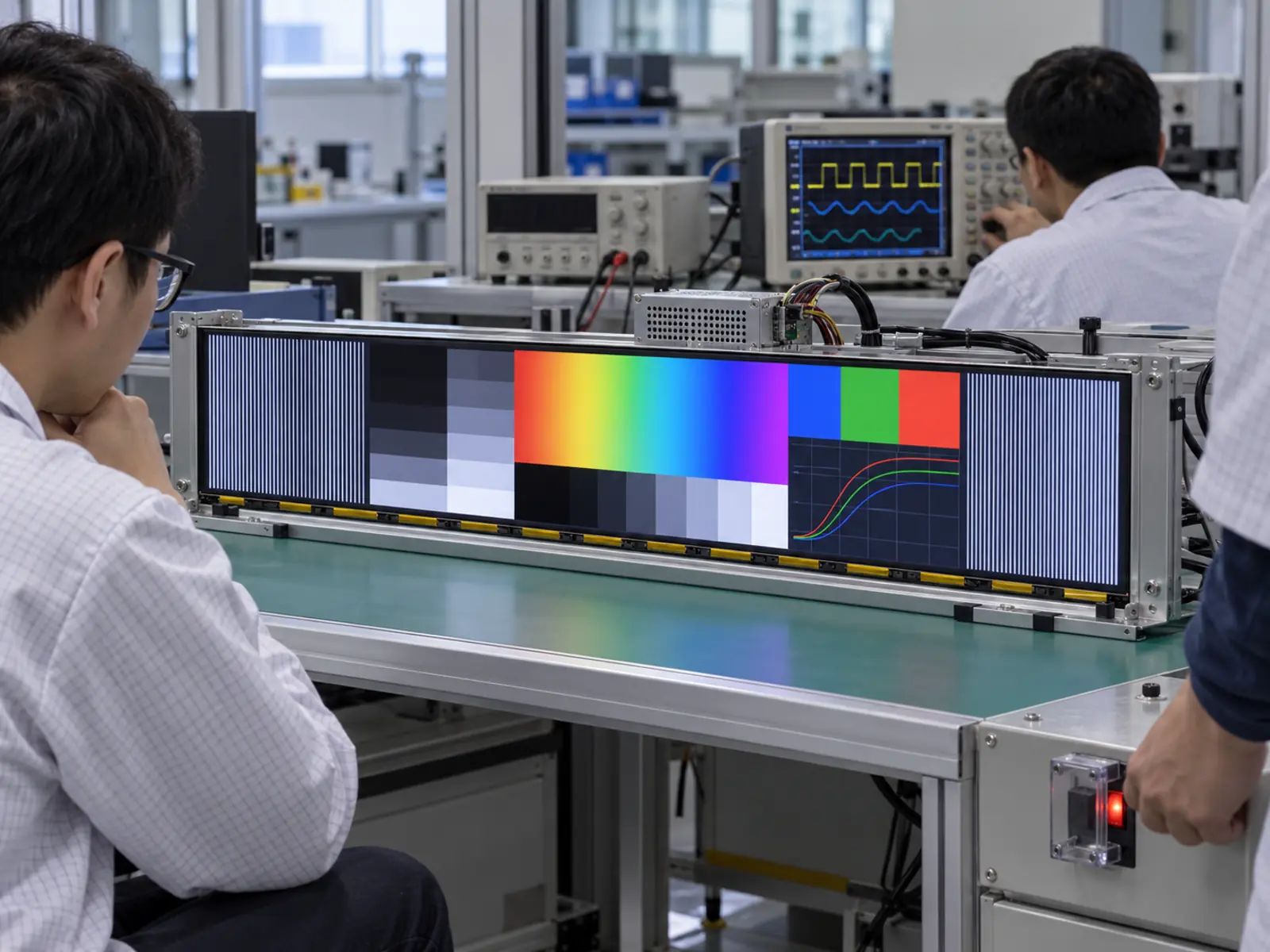

Test the intended host with the production-length cable in its proposed route. Use column-marked patterns, alternating pixels, color ramps, and actual equipment pages to check image order, detail, and color. Repeat cold starts and agreed signal-recovery tests. A continuity pass cannot establish high-speed signal integrity.
Retain the cable drawing, inspection results, timing settings, and sample configuration. Require review before changing connector parts, conductor arrangement, length, controller, or firmware.
Claim: Order release requires both a verified wiring schedule and a reproducible operating sample.
What Advantages Does XIANHENG Offer for LM250WW1-SSA3 Cable Sourcing?
XIANHENG can review the LG Display LM250WW1-SSA3 25.0 Inch Ultrawide IPS LCD inquiry with the host specification and panel records, then propose controller, firmware, custom-cable, and backlight-driver requirements for confirmation and sampling.
The bare-LCD reference excludes touch. A custom PCAP assembly, cover glass, and bonding can be assessed separately, including touch-controller wiring and routing. The website lists 250 cd/m² typical standard luminance. Selected models may be evaluated for 500–1000 cd/m² customization or special higher targets; SSA3 feasibility requires confirmation, with driver, power, thermal, and final-stack brightness checks. Customization does not establish wide-temperature suitability or equipment certification.
Send label photographs, available drawings, host details, cable route, target brightness, touch requirements, and quantities. Review the Industrial LCD Product Collection or reach out to XIANHENG for project review. The OEM remains responsible for completed-equipment validation.
Claim: XIANHENG can help turn the interface inquiry into a defined supply proposal, subject to document confirmation and sample approval.
