EV charger display cover glass is both a visible product surface and an engineered interface. It sets the viewing window, carries the printed border and branding, transmits touch input, and connects the display stack to the charger front panel. A drawing that defines only the outer dimensions and logo leaves several important interfaces unresolved.
The expensive mistakes usually appear between disciplines. Industrial design approves a narrow border, mechanical engineering adds a gasket, the touch supplier needs sensor clearance, and the LCD arrives with a connector that conflicts with the rear bracket. These problems are easier to resolve while the glass is still a drawing than after printed samples or bonded assemblies have been made.
Quick Answer: Design EV charger cover glass around one coordinated drawing set for the LCD, touch sensor, printed artwork, adhesive regions, and enclosure. Define datums, viewing direction, outline, thickness, clear windows, touch area, holes, edge finish, material, strengthening, coatings, printing, bonding, support, tolerances, and inspection conditions. Check alignment at tolerance limits and at intended viewing angles. Approve production-representative glass with the actual sensor, LCD, mounting, and cleaning process. Glass thickness alone does not establish impact protection, touch capability, sealing, or outdoor readability.
Claim: A cover-glass design is ready for release when its visible, optical, touch, adhesive, and mechanical interfaces agree in the same coordinate system.

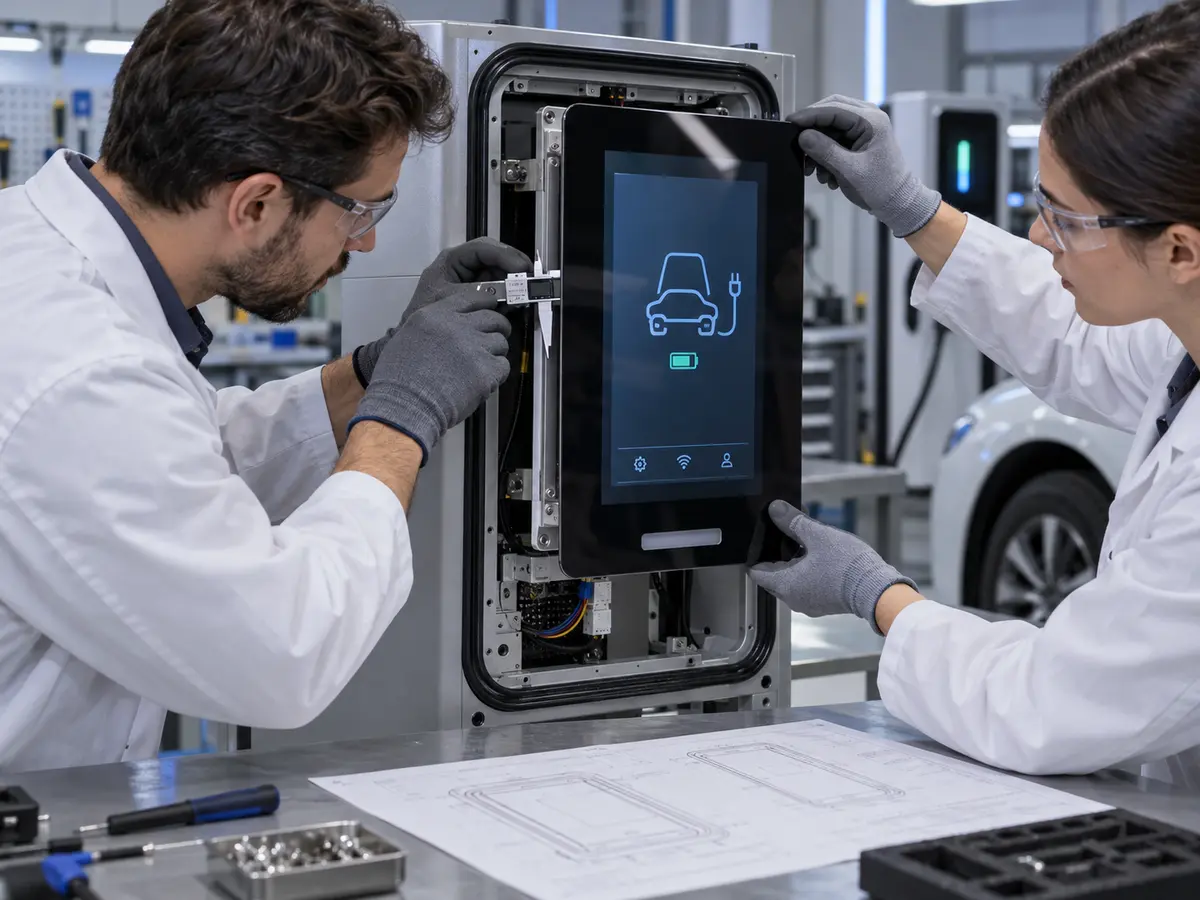

1. How Should the Display, Touch, and Printed Windows Be Aligned?
The charger front contains several different boundaries: the LCD active area, its mechanical frame, the clear printed window, the usable touch area, and the enclosure opening. These boundaries do not necessarily have the same dimensions or center.
Direct answer: Overlay the component drawings using shared datums and an explicit viewing direction. Dimension the image window, touch area, artwork, attachment zones, and enclosure opening independently, then assess their relative positions through the full tolerance stack.
Which View Should Control the Artwork?
Label the user-facing and rear surfaces and state whether the drawing is viewed from the front or rear. Rear printing introduces a mirroring risk, especially for asymmetric windows, connector clearances, logos, and indicator locations.
Use physical datums that can be measured during manufacture and assembly. Artwork positioned from a decorative outline while the bracket references a different edge can create an alignment error that is absent from either individual drawing.
How Does the Clear Window Relate to the LCD Active Area?
A window that exactly matches the nominal active area leaves no allowance for print registration, placement, or viewing geometry. Conversely, a substantially oversized window can expose inactive LCD edges, frame features, adhesive, or light leakage.
Determine the acceptable visible image and border together. Use the panel's actual active-area position within its outline, not an estimate based on diagonal size or a centered rectangle drawn over a product photograph.
What Does a Tolerance Calculation Reveal?
Consider an illustrative design with a 216 × 122 mm active area and a centered 220 × 126 mm clear window. The nominal clearance is 2 mm on each side. If the combined relative center displacement can reach 0.6 mm on either axis, the smaller clearance becomes 1.4 mm before window-size and active-area-size tolerances are included.
This example is not a recommended dimension set. It demonstrates why adding several nominal drawings is insufficient. Include print-to-glass registration, glass-to-frame placement, LCD location, assembly fixtures, and any angular error in the actual budget.
Evaluate both image clipping and unwanted exposure at opposite tolerance limits. If the design cannot satisfy both, change the border, positioning method, window size, or component choice before relying on assembly adjustment.
Why Must Oblique Viewing Be Checked?
The printed mask and pixel plane occupy different depths. At an angle, the border can obscure image content differently from a straight-on view, particularly with an air gap or a deep front construction.
Check the intended driver eye positions and mounting angle with the full stack. Reserve suitable software margins for text and controls, but do not use a software margin to conceal uncontrolled mechanical alignment.
How Should Auxiliary Windows and Hardware Openings Be Defined?
Indicator windows, ambient-light sensors, cameras, readers, and payment devices may require separate openings or transparent regions. A clear region, a tinted translucent region, and a physical hole are different manufacturing requirements.
Specify function and optical conditions for each region. A tinted window that looks acceptable when unlit may attenuate a sensor or hide a status indicator in sunlight. Confirm actual device operation behind the finished glass.
| Drawing Layer | Information to Control | Conflict to Prevent |
|---|---|---|
| LCD | Active area, outline, frame, connector, datum | Clipped pixels or visible inactive edges |
| Artwork | Clear regions, print surface, registration, color | Mirrored features or an opaque border over controls |
| Touch sensor | Usable area, border, controller, tail route | Unresponsive edge targets or trapped flex tail |
| Attachment | Adhesive width, thickness, support, seal interfaces | Uneven support or adhesive intruding into the window |
| Enclosure | Opening, flatness, clearance, removal path | Hard edge contact or an assembly that cannot be serviced |
Claim: Nominal alignment is only the starting point; tolerance limits, viewing angle, and hidden attachment features determine the usable front-panel geometry.
2. Which Glass and Machining Decisions Must Precede Thickness Approval?
Glass thickness affects stiffness, weight, touch sensing, optical geometry, and the available mounting depth. Its suitability also depends on material, processed edges, holes, strengthening, and support.
Direct answer: Select the glass material and manufacturing route together with the mechanical and touch requirements. Confirm edge treatment, hole geometry, strengthening conditions, support regions, and the assembly-level evidence required for the charger.
Why Is the Word Tempered Insufficient?
Supplier terminology can conceal different materials and strengthening methods. Ask whether the proposal uses thermal toughening, chemical strengthening, or another specified construction, and obtain the relevant material and process definition.
These methods are not interchangeable across every thickness and shape. Confirm which material properties and inspection records the supplier can control rather than approving a generic tempered-glass description.
How Should Thickness Be Balanced against Touch Performance?
Increasing the distance between the finger and a capacitive sensor changes the sensing conditions. The controller, electrode design, glass properties, adhesives, and required glove operation must support the chosen stack.
There is no universal thickness that simultaneously proves impact resistance and glove operation. Freeze the proposed stack before final tuning, and verify touch through the maximum approved construction thickness and relevant tolerances.
Why Do Edges, Corners, and Holes Need Specific Drawings?
Define corner radii, edge finish, hole diameters, positions, chamfers where required, and distance to adjacent features. Machining defects and concentrated contact near these regions can affect the installed glass behavior.
Let the glass processor review manufacturability and the sequence of machining, strengthening, printing, and coating. Do not assume a late hole addition can use the same process or retain the evidence of the original construction.
What Should Support and Expansion Clearance Achieve?
The frame should support the glass without uncontrolled point loads or hard contact at its edges. Adhesive and gasket thickness, frame flatness, fastening, and assembly variation affect that support.
Allow for relative movement of glass, metal, and other materials across the specified temperature range. Assess the actual joint and load path; simply adding more adhesive or tightening clamps can increase stress or distort the assembly.
Which Claims Require Completed-Assembly Tests?
Impact protection depends on the specimen construction, support, mounting, exposure, and acceptance method. A glass coupon result cannot automatically approve a display bonded to that glass and installed in a different frame.
Likewise, scratch resistance and impact resistance answer different questions. A surface-hardness claim does not establish an enclosure impact rating, and neither establishes water sealing or safe behavior after breakage.
Claim: Material, processing, feature geometry, and support must be approved together; thickness is only one part of the glass specification.
3. How Should Printing, Coatings, and Adhesive Regions Be Coordinated?
A finished glass surface has several jobs. Its coating controls part of the viewing experience, its printing hides selected regions, and its rear attachment areas carry loads or contribute to a designed seal.
Direct answer: Specify each surface and functional region independently, then check compatibility among glass, coatings, inks, adhesives, touch sensing, and cleaning. Define which layers occupy the optical window and which occupy the attachment path.
What Should a Printed Border Actually Hide?
The border may conceal the LCD frame, sensor routing, bonding perimeter, and enclosure attachment. Its width should follow the hidden construction and tolerances rather than a styling target alone.
Specify opacity, color reference, registration, and permitted pinholes or light leakage under agreed inspection conditions. A black border that appears uniform on the bench may reveal differences when backlit or viewed in sunlight.
Why Does Ink Compatibility Affect More than Appearance?
Where adhesive bonds onto printing, the joint includes ink-to-glass adhesion as well as adhesive-to-ink adhesion. A strong adhesive cannot compensate for a poorly attached print layer beneath it.
Review ink, cure, layer build, cleaning, surface preparation, and adhesive compatibility with the processors. Metallic or conductive decorative materials should also be reviewed with the touch designer rather than treated as electrically irrelevant artwork.
How Should Anti-Glare and Anti-Reflective Treatments Be Chosen?
Anti-glare treatment redistributes reflections; anti-reflective treatment reduces reflection through a coating design. Both need assessment with the real LCD, pixel density, image content, lighting, and viewing direction.
Compare small text, dark backgrounds, perceived sharpness, reflected objects, and cleaning appearance on samples. More haze is not automatically better. Optical-stack background is available in How Does Optical Bonding Improve Outdoor LCD Performance?.
What Should Be Defined for Adhesive Lands and Bonding?
Dimension adhesive regions, exclusions, nominal thickness, placement tolerances, and required clearances. A printed step, a coating edge, or adhesive overflow can change the joint or become visible near the active window.
Distinguish optical bonding from structural attachment and perimeter sealing. One material may serve more than one role only where that construction has been designed and validated; filling the optical gap does not approve every enclosure interface.
How Should Cleaning and Outdoor Exposure Be Included?
Specify the approved cleaner, concentration, dwell, wiping material, frequency, and drying method. Check the coating and printing as well as the glass substrate, since appearance and adhesion can change before the glass itself is affected.
For outdoor projects, include the relevant exposure and aging requirements in the validation plan. Assess resulting color, surface, optical, touch, and joint changes rather than assuming a durable substrate protects all added layers indefinitely.
Claim: Printed artwork, optical treatments, and attachment layers are functional materials whose interfaces require compatibility and inspection criteria.
4. What Evidence Should Release the Cover-Glass Drawing for Production?
A signed artwork image is not a complete production approval. The release package should connect the mechanical drawing, artwork, material construction, process requirements, inspection criteria, and tested sample.
Direct answer: Use staged approval: confirm dimensions and overlays, evaluate finished glass, assemble the production stack, verify installed functions, and retain the approved revision and inspection references. Each stage should answer a different unresolved question.
What Should the Supplier Return before Samples?
Request a manufacturability review covering material, thickness, edge processing, holes, printing, coatings, bonding regions, achievable tolerances, and any proposed deviations. Resolve which dimensions are critical and which are general manufacturing dimensions.
Separate the drawing revision from artwork revision if they are controlled independently, and link both in the approval record. Confirm prototype and production processes so that an appearance sample is not mistaken for a fully representative article.

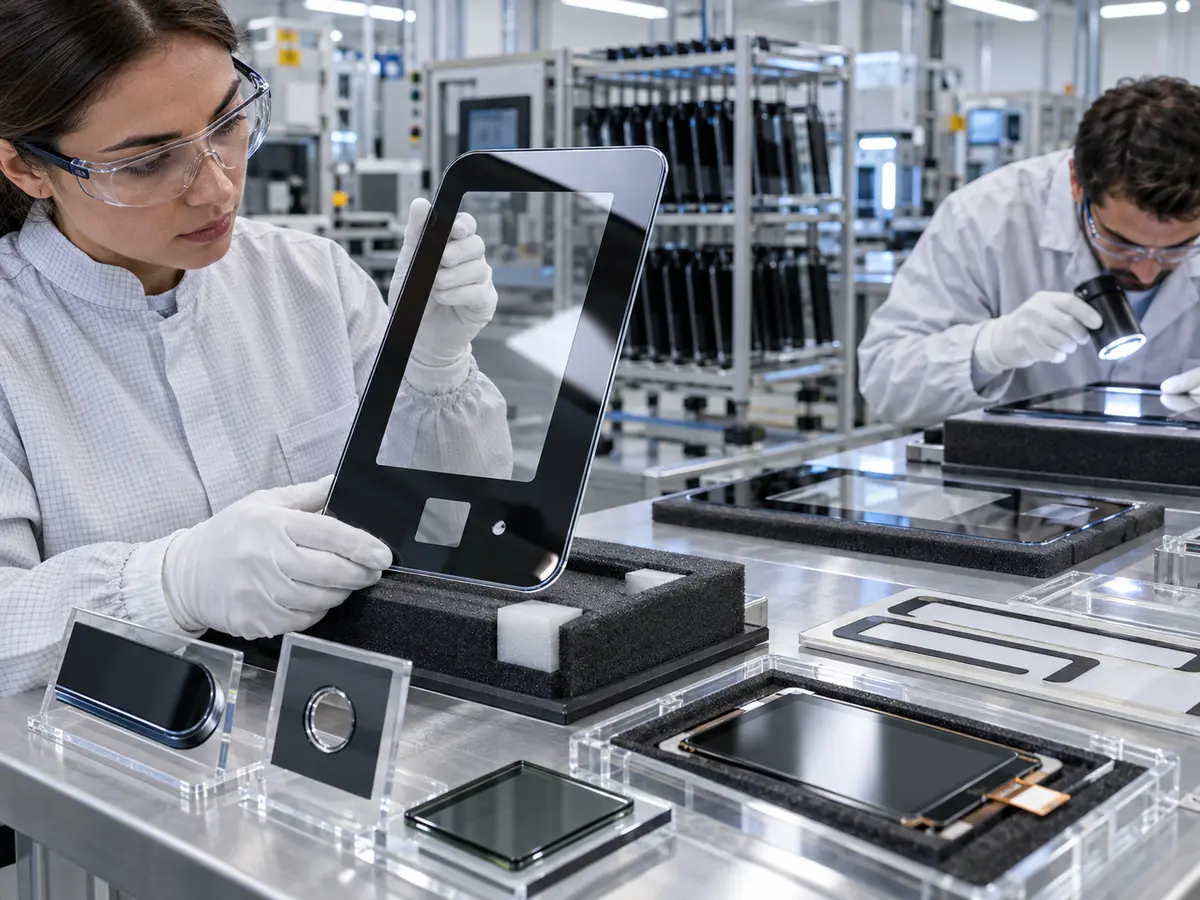

How Should Cosmetic Inspection Be Made Repeatable?
Define inspection distance, lighting, viewing angle, background, and whether the LCD is illuminated. Agree defect criteria by region for scratches, particles, print defects, bubbles where bonded, and edge damage.
Retain approved color and appearance references where useful. A digital logo file defines geometry but does not reliably establish the final printed color on the selected glass and backing construction.

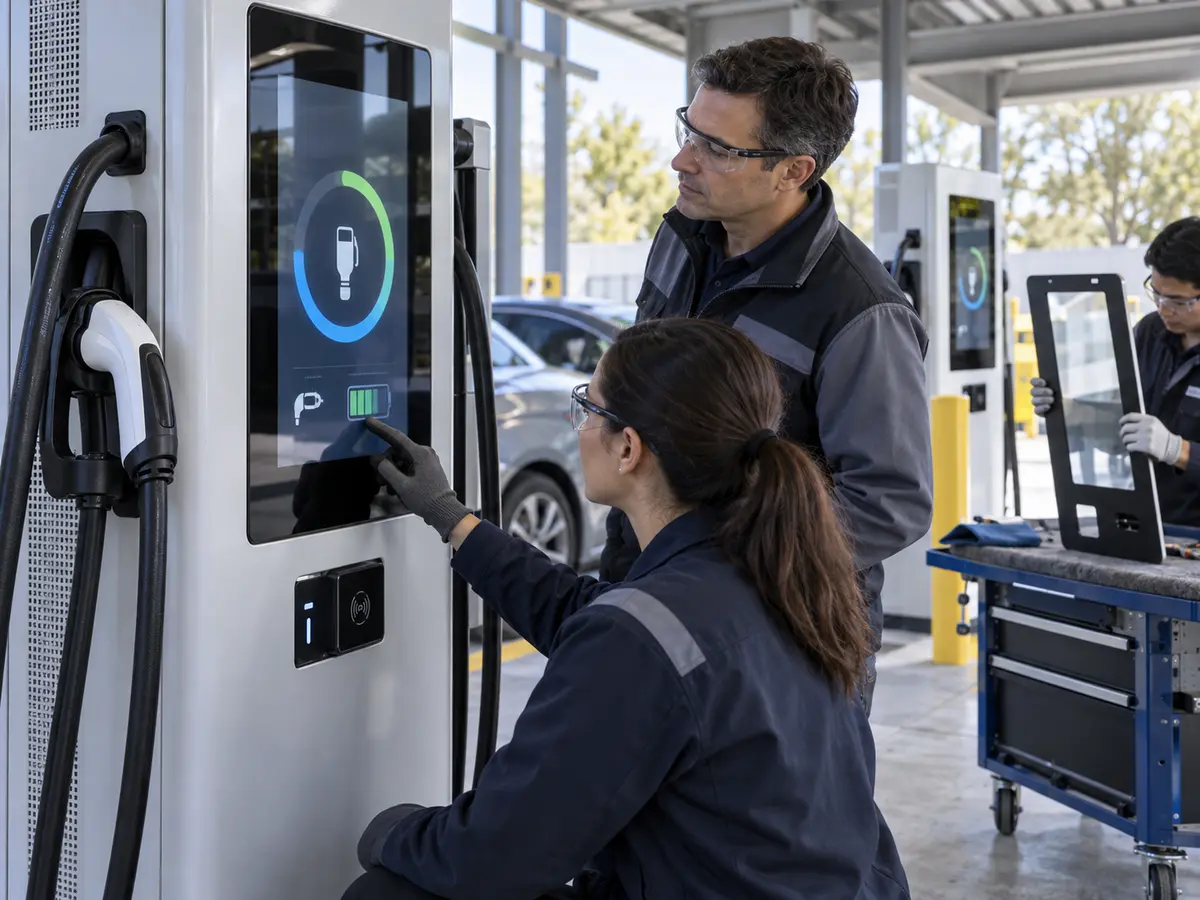

What Must Be Checked on the Assembled Front?
Verify window alignment, image visibility from intended angles, touch targets near the border, indicator windows, sensor operation, mounting clearance, and cable-tail routing. Check the frame at representative tolerances and fastening conditions.
Run the actual charger pages and intended brightness settings. An unpowered glass sample cannot expose image clipping, illuminated print defects, glare over critical instructions, or a control placed outside the usable touch region.
How Should Service and Replacement Be Reviewed?
Decide whether the service part is glass alone, glass with touch, a bonded display stack, or a larger front assembly. The answer affects adhesive selection, replacement access, handling, spare pricing, and the tests required after repair.
Check the removal process on a representative assembly. If access requires flexing the LCD, cutting near a sensor tail, or disturbing a sealing joint, document a controlled method or revise the construction.
Which Changes Should Reopen Approval?
A thickness, glass material, coating, ink, adhesive, hole, frame, or sensor change can affect more than one function. Even a logo or border revision may encroach on a sensor window, adhesive land, or visible image margin.
Use a change assessment to identify affected dimensional, optical, touch, mechanical, and sealing checks. Prevent production substitutions based solely on matching appearance or nominal size.
How Can Inspection Distinguish a Defective Part from a Design Mismatch?
If an assembled window clips the image, measure the glass and print from their specified datums, then measure the LCD and bracket positions independently. A glass part can meet its drawing while the completed tolerance combination still fails the viewing requirement.
Similarly, an adhesive separation may occur at the glass, print, adhesive, or frame interface. Record the failure location before changing adhesive strength or assigning responsibility. Testing approved material coupons can help investigate compatibility, but the finished joint also needs representative geometry, preparation, cure, and loading.
The corrective action should match the evidence: reject a part outside its specification, correct an assembly process outside its limits, or revise a design whose approved tolerances permit an unacceptable result. Tightening an unrelated glass tolerance adds cost without necessarily controlling the actual error.
Claim: Production release requires a controlled drawing set and representative assembled evidence, with a defined route for cosmetic inspection, service, and changes.
5. What Advantages Does XIANHENG Offer for EV Charger Cover-Glass Projects?
XIANHENG supports OEMs developing display fronts for charging equipment. Work can begin with industrial-design artwork, a selected LCD, an enclosure drawing, or an existing front assembly that needs replacement.
Direct answer: XIANHENG can coordinate supported cover-glass customization with LCD selection, PCAP touch, controller firmware, bonding, drawings, cables, and samples. Glass outline, thickness, printed regions, windows, holes, edges, coatings, and attachment interfaces can be reviewed within the agreed project scope. Final charger structure, payment-device integration, impact and ingress claims, accessibility, and equipment qualification remain with the responsible OEM and partners.
How Can XIANHENG Review Artwork against the LCD?
Provide the LCD model or target active area, mechanical outline, proposed artwork, enclosure opening, and mounting datums. The review can identify mismatched windows, border constraints, touch-tail conflicts, and dimensions still awaiting confirmation.
If the LCD is not selected, customers can compare starting options in the Industrial LCD Product Collection. Panel selection should precede final window and bracket release.
Can Touch and Glass Be Developed as One Assembly?
Supported development can align the usable touch area, glass construction, sensor, controller, tail location, bonding, and host connection. The sample can then be checked through the actual glass rather than a temporary thin cover.
Provide required gloves, water conditions, host, and nearby metal so that touch review uses the intended construction. A glass change after tuning should be assessed before its production use.
How Can Prototype Stages Reduce Rework?
The project can separate dimensional fit, appearance review, and assembled functional validation where useful. Record which features each sample represents and which still differ from the proposed production process.
This helps the OEM approve the correct question at each stage. A satisfactory print sample should not inadvertently authorize untested mounting, bonding, or touch behavior.
What Should a Quotation Distinguish?
Identify glass processing, printing setup, supported coatings, touch development, bonding, sample quantities, inspection, packaging, and recurring production scope. State whether the item supplied is loose glass, a touch panel, or a complete display stack.
Agree revision control and spare requirements alongside the production quantity. Different brand artwork or window arrangements may create distinct service parts even when they use the same LCD.
What Information Should Customers Send to Start?
Send application, LCD model, screen orientation, mechanical drawings, artwork files, datums, glass dimensions, thickness objective, window functions, surface treatments, touch requirements, mounting and adhesive interfaces, exposure conditions, quantity, schedule, and service strategy.
To discuss customized EV charger cover glass, printed touch fronts, LCD alignment, bonded assemblies, or replacement display stacks, please reach out to XIANHENG.
Claim: XIANHENG supports cover-glass projects by coordinating artwork, dimensions, touch, LCD, bonding, and samples around a reviewable front-assembly specification.
